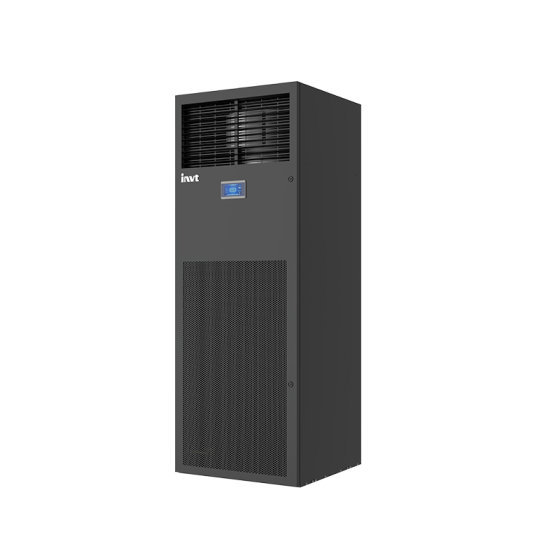

VCA Series Room Precision AC (5.5kW-32kW)
SPECIFICATIONS
Unit | VCA005/VCP007- O | VCA007/VCP010- O | VCA012/VCP018- O | VCA017/VCP024- O | VCA020/VCP028- O | ||||||
Type | – | KF | Constant Temp&Hum | KF | Constant Temp&Hum | KF | Constant Temp&Hum | KF | Constant Temp&Hum | KF | Constant Temp&Hum |
Cooling Capacity | kW | 5.5 | 5.5 | 7.5 | 7.5 | 12.5 | 12.5 | 17.0 | 17.0 | 20.5 | 20.5 |
SHR | kW | 0.91 | 0.91 | 0.9 | 0.9 | 0.9 | 0.9 | 0.93 | 0.93 | 0.92 | 0.92 |
Air Volume | m³/h | 2000 | 2300 | 3200 | 5000 | 5500 | |||||
Heating Capacity | kW | – | 3.0 | – | 3.0 | – | 3.0 | – | 6.0 | – | 6.0 |
Humidification Capacity | kg/h | – | 3.0 | – | 3.0 | – | 3.0 | – | 3.0 | – | 3.0 |
Compressor | – | Fixed-frequency | |||||||||
Power Supply | V | 220V~50Hz 1PH | 380V~50Hz 3PH | ||||||||
Full Load Current | A | 10.5 | 23.0 | 14.9 | 25 | 10.8 | 21.9 | 14.3 | 25.6 | 14.6 | 26.1 |
Gas Pipe Size | mm | 9.52 | 9.52 | 9.52 | 9.52 | 9.52 | 9.52 | 12.7 | 12.7 | 12.7 | 12.7 |
Liquid Pipe Size | mm | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 19.05 | 19.05 | 19.05 | 19.05 |
Weight | kg | 62 | 65 | 100 | 120 | 130 | |||||
